MERCUSYS MS124GS

Massive Gigabit Expansion:

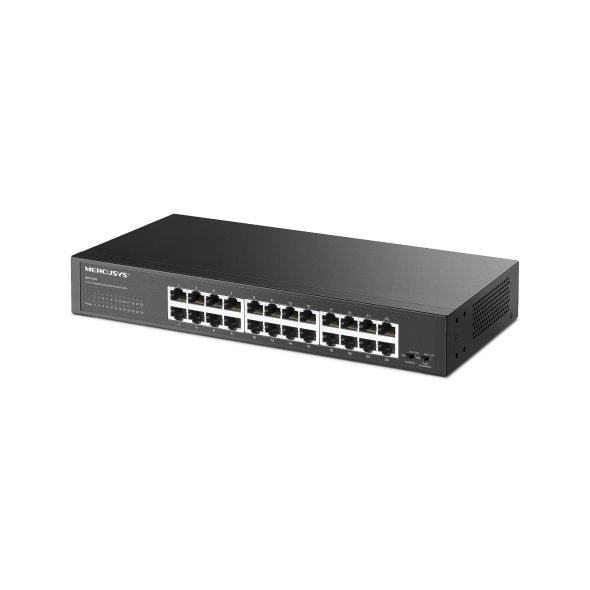

• 24 Gigabit Ports: Features 24× 10/100/1000 Mbps RJ45 ports, offering 10x faster speeds than standard Fast Ethernet.

• 48 Gbps Switching Capacity: Delivers high-speed data processing and non-blocking forwarding to prevent bottlenecks.

• Auto-MDI/MDIX: No crossover cables are required; every port automatically detects the cable type.

Advanced Safety & Management:

• Isolation Mode: A one-click physical switch that separates traffic for ports 1–22 to isolate broadcast storms and prevent unauthorized snooping/tampering.

• Loop Prevention: Automatically detects and blocks network loops, protecting the rest of your network from crashing due to cabling errors.

• QoS (802.1P/DSCP): Prioritizes voice and video traffic to ensure smooth performance for online calls and streaming.

Premium Industrial Build:

• Durable Metal Casing: Built to last with a steel housing that improves signal shielding and heat management.

• Rackmount & Desktop Ready: Includes a rackmount kit, allowing it to be installed in professional server cabinets or placed on a desk.

• Silent Architecture: The fanless design makes it completely silent, which is essential for office spaces.

Energy Efficiency & Standards:

• Green Ethernet: Features energy-efficient technology that automatically adjusts power consumption based on cable length and link status.

• Global Standards: Fully compliant with IEEE 802.3i, 802.3u, 802.3ab, 802.3x (Flow Control), and 802.1p protocols.

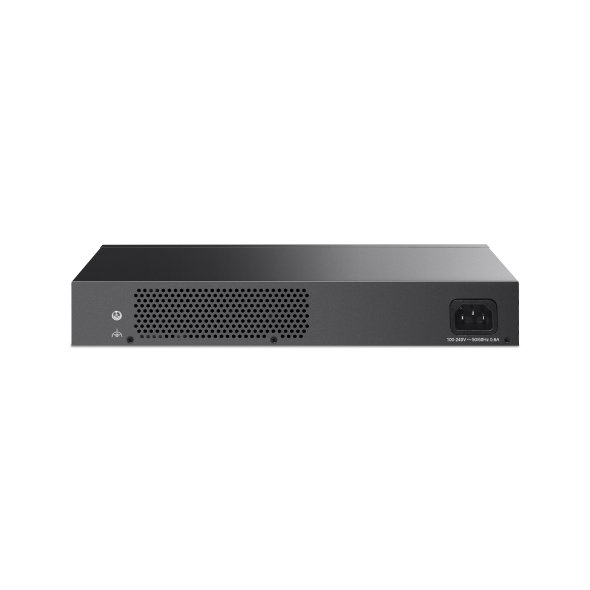

• Built-in Power Supply: Uses a standard 100-240V internal power supply, eliminating the need for bulky external adapters.
